Ingenico Move 5000 - Touch Screen Calibration

If having issues with the touch screen on the Move 5000 terminal the screen can be recalibrated within the menus

Step 1: From the Home screen use the code 2-6-3-4 + white button

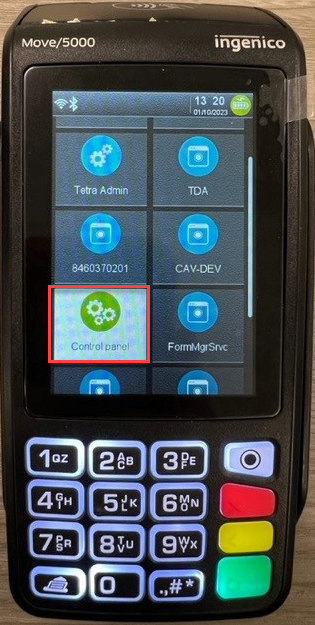

Step 2: In this menu we will locate "Control Panel"

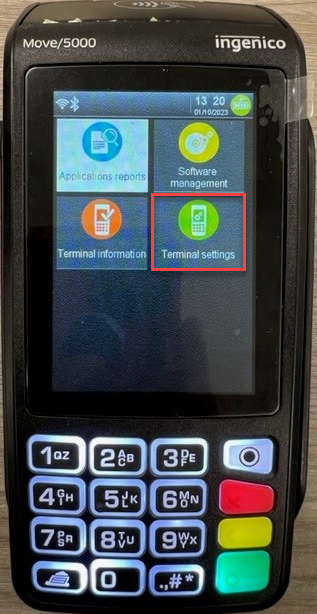

Step 3: We will then select "Terminal Settings"

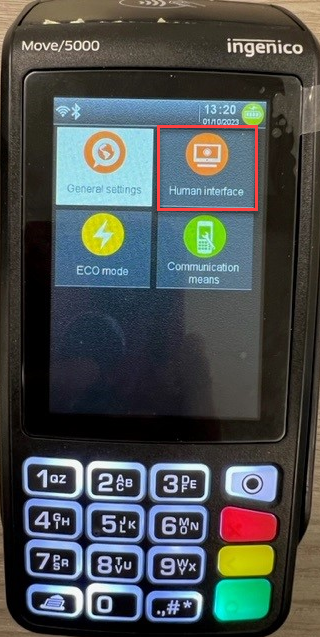

Step 4: Next Select "Human Interface"

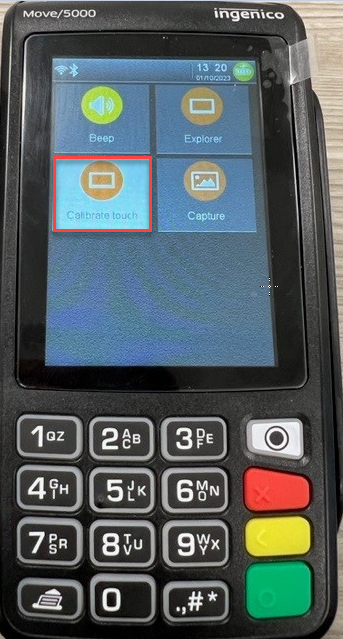

Step 5: Finally we will select "Calibrate Touch" and follow the On-Screen Instructions
